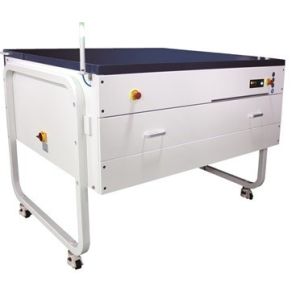

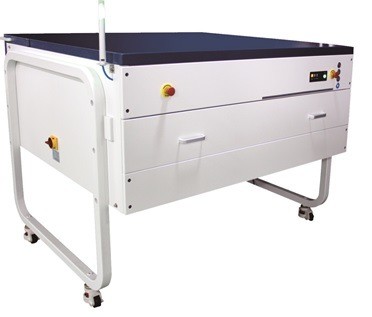

Name: MCU800 4 Cassettes 400x300mm RS485 75PPH CTP Plate Machine
Brand: EcooGraphix
Price: 1 USD

Brand Name : EcooGraphix

Model Number : MCU800

Certification : ISO9000, CE

Place of Origin : China

MOQ : 1 SET

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10,000 Sets/Year

Delivery Time : 30 DAYS

Packaging Details : Standard Export Packing

Type : CTP Plate Machine

Plate Feeding Speed : ≤ 75 plates/hour

Plate Size : Max. 1,163 x 940mm, Min. 400 x 300mm

Plate Loading Quantity : 4 cassette (100 pieces per cassette)

Interface : RS 485

Plate Loading Way : Manually stack plate in cassette or on loading platform

Air Supply : > 0.65Mpa

Contact Now

Prepress Multi Cassette Autoloader For Online CTP Machine

Specification

ECOO Cassette Autoloader Technical Specification
Model	MCU800(multi)
Cassette Type	Multi cassette(4 cassettes)
Plate Feeding Speed	≤ 75 plates/hour
Plate Size	Max. 1,163 x 940mm, Min. 400 x 300mm
Plate Thickness	0.15mm-0.40mm
Interface	RS 485
Plate Loading Way	Manually stack plate in cassette or on the loading platform
Plate Loading Quantity	4 cassettes (100 pieces per cassette)
Net Weight	560KG
Device Size	1,683 x 1,460 x 1,280mm (WxDxH)
Air Supply	> 0.65Mpa
Vacuum Suction (Plate)	-0.50Mpa
Vacuum Suction (Paper)	-0.40/ -0.30MPa (different paper)
Power Supply	Single phase: 200V; Max. power(peak value): 1,100W
Environment	Operating temperature range: 15-30℃, Recommended temperature: 21-25℃, Humidity: < 70%
