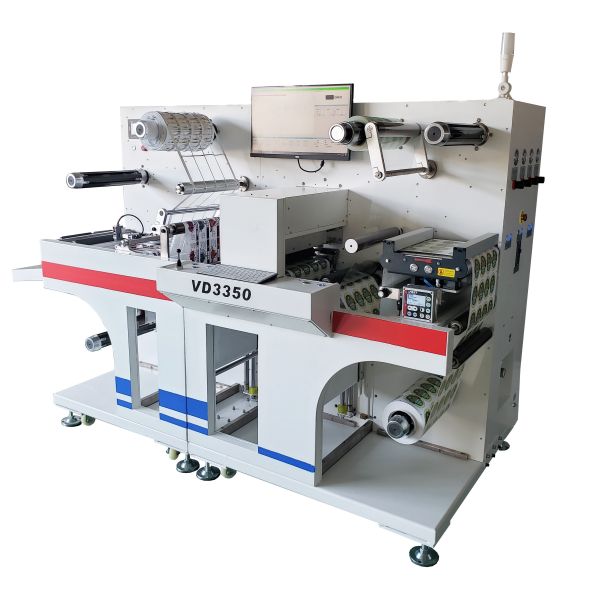

Model:Ecoo VD3350 Digital Die Cutting Machine
►Introduction
Use the unique and intelligent digital die-cutting technology of our VD3350 high speed digital label
due cutter, automatically choose cutting file and adjust te heads distance. Cutting by four heads*3
units simultaneously. You do not need to worry about the production of small and medium batch
labels. What is more important is it reduces the manual intervention and greatly improves the work
efficiency compared with the previous digital cuttings.
1. Fast and high precision with full-servo motor
2. Fully automatic tension and feeding control
3. Intelligent position, choose file automatically
4. Standard 4 cutting heads distance can be adjusted automatically
5. Support 3 units cutting simultaneously
6. Intelligent cutting with trajectory optimization
►Product Detail Presentation 1 High precision feeding system:
Utilize the ultrasonic web-guide system, it makes sure the feeding perfectly.
2 Cold laminating
It has cold laminating function, your label will be bright and perfect. The back liner removal is optional.
3 Digital die-cutting system
VD3350 Digital label die-cutter utilizes high precision screw transmission system. Max speed can be 30m per minute. Individual control for the 4 heads, combining with the function of auto adjust the heads distance, to make the every single head on or off.
4 CCD identify system
With the CCD camera position and identify system, to recognize the sequence, to reach the function of changing file and cutting next graphics automatically.
5 Precision slitting system
Utilize rotary slitting mode, can install max.15 blades, high speed with 60m per minute, instead of traditional slitting equipment completely.
6 The waste removing system
The precision machinery design can control the roller rotating uniformly, avoid removing waste discontinuously due to unstable pressure, keep finishing labels clean.
7 Sheet Cutter
The optional built-in Pc350 Sheet Cutter, can be inline with the main Die-cutting, to perform the synchronous die-cutting and sheet cutting.
►Software Features
• Running status can be seen in real-time
• Choose the quantity of the heads based on graphics
• Choose the heads distance automatically
• Support file database
• Intelligent cutting with trajectory optimization
• Auto-generate the working records
►Technical Data
| Digital Die Cutting Machine |
| Model | Ecoo-VD3350 |
| Max. media roller | diameter 450mm |
| Cutting media width | 40-350mm |
| Max.label width | 330mm |
| Min.label length | 10mm |
| Max.label length | 600mm |
| Cutting speed | max.9m per minute (depend on label shape and size) |
| Cutting blades | (standard) 4 pcs |
| Slitting blades | (standard 4 pcs ) max.15pcs |
| Cutting tracking | CCD camera |
| Die-cutting technology | with tungsten steel rotary blades |
| Cutting precision | 0.1mm (duplicate) |
| Slitting speed | Max. 100m per minute |
| Slitting width | 10-330mm |
| Slitting precision | 0.1mm |
| Machine size (W*D*H) | 2100*1195*1575 mm |
| Machine weight | 1200kg |
| Power | 110-127VAC 50-60HZ, 1000WATTS/220-240VAC 50-60HZ, 1000WATTS |
| Warranty | 1year (besides high consumable parts) |
| Options | Cutting head/Slitting unit/Film back liner removal/Sheet paper cutter |
| Above data are get from testing in lab, there is difference when you use. |
